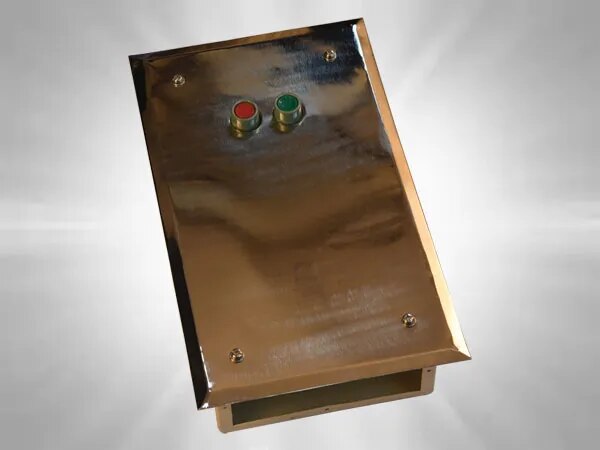

FLP / WP Clean Room Push Button Station
In stock
Description
Technical Specification
Type of Ex-Protection : AS PER IS / IEC-60079-1:2007
Zone Classification : Zone 1 & Zone 2
Gas Group : Gas Group I, IIA, IIB
Ingress IP Protection : IP-65 IS / IEC60529-2001
Material of Construction : Die Cast Aluminum Alloy LM6
Rating : Green: START with 1 NO Contact Element for 10 AMP
Rating : Red: STOP Mushroom Head Pad Lock with 1 NC Contact 10 AMP
Clean Room Purpose : M.S. Box with S.S. 304 Cover Plate
Paint : Epoxy Polyester Powder Coating
Earthing : Internal: 01 No. & External: 2 Nos.
Cable Entry : 02 Nos. for M20 (3/4” ET)
Hardware : Stainless Steel
