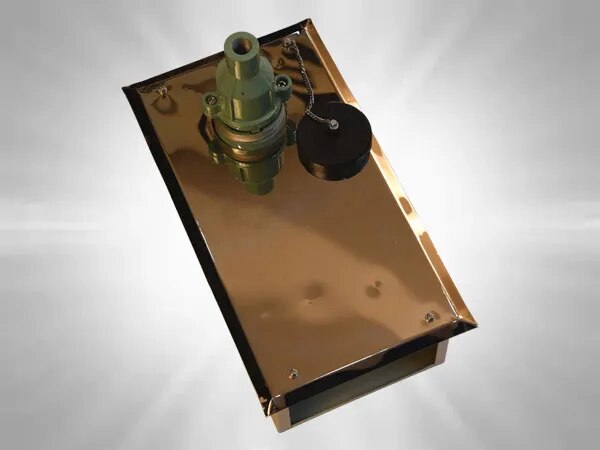

FLP / WP Clean Room Switch Socket with Plug
In stock
Description
Technical Specification
Type of Ex-Protection : AS PER IS 2148-2004/IEC-60079-1:2007
Zone Classification : Zone 1 & Zone 2
Gas Group : Gas Group I, IIA, IIB
Ingress IP Protection : IP-65 IS / IEC60529-2001
Material of Construction : High Pressure Die Cast Aluminum Alloy LM6
Paint : Epoxy Polyester Powder Coating
Earthing : Internal: 01 No. & External: 2 Nos.
Cable Entry : 02 Nos. for M20 (3/4” ET)
Hardware : Stainless Steel
Clean Room Purpose : M.S. Box with S.S. 304 Cover Plate
Switch : Upto 32 A SP / DP / TP
Socket : 3 PIN / 4 PIN / 5 PIN
Plug : 3 PIN / 4 PIN / 5 PIN
Terminals : Clip on Type Rail Mounted & Strip Type
