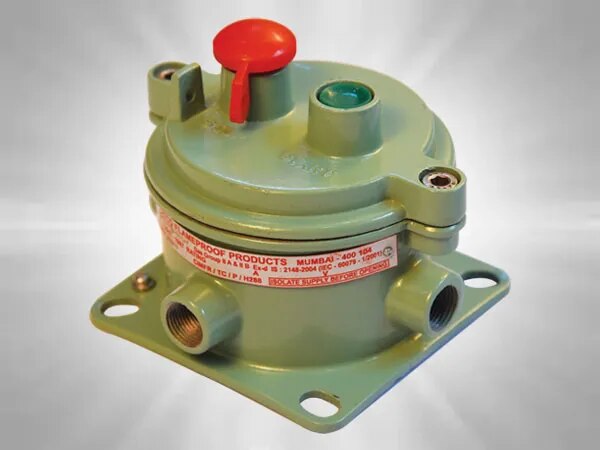

FLP / WP Direct Entry - Push Button Station
In stock
Description
Catalogue No : PFP/PBS/10
Type of Ex-Protection : As per IS / IEC-60079-1:2007
Zone Classification : Zone 1 & Zone 2
Gas Group : Gas Group I, IIA, IIB
Ingress IP Protection : IP-65 IS / IEC 60529-2001
Material of Construction : Die Cast Aluminum Alloy LM6
Green Push Button : START with 1 NO Contact Element for 10 AMP
Red Push Button : STOP Mushroom Head Pad Lock with 1 NC Contact 10 AMP
Paint : Epoxy Polyester Powder Coating
Earthing : Internal: 01 No. & External: 2 Nos.
Cable Entry : 02 or 04 Nos. for M20 (3/4” ET)
Hardware : Stainless Steel
