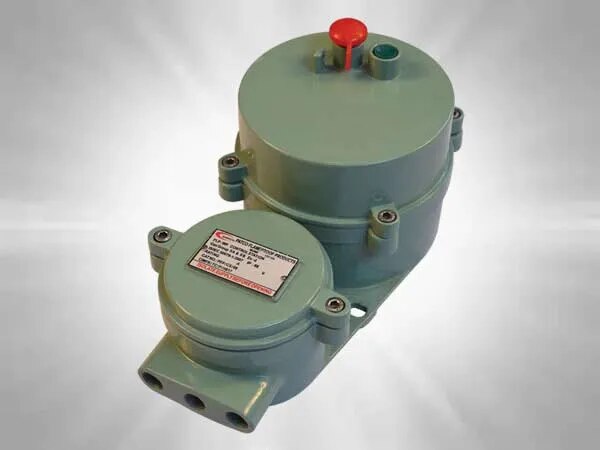

FLP / WP DOL Starter Upto 10HP
In stock
Description
Catalogue No : PFP/DOL/08
Type of Ex-Protection : As per IS / IEC-60079-1:2007
Zone Classification : Zone 1 & Zone 2
Gas Group : Gas Group I, IIA, IIB
Ingress IP Protection : IP-65 IS / IEC 60529-2001
Material of Construction : Die Cast Aluminum Alloy LM6
Rating : Up to 10 H.P. 220V / 415 Volts AC 50 / 60Hz
Green Push Button : START with 1 NO Contact Element for 10 AMP
Red Push Button : STOP Mushroom Head Pad Lock with 1 NC Contact 10 AMP
Terminal : 6 Way Clip-on Type Rail & Strip Type
Paint : Epoxy Polyester Powder Coating
Earthing : Internal: 01 No. & External: 2 Nos.
Cable Entry : 02 Nos. for M20 (3/4” ET)
Hardware : Stainless Steel
