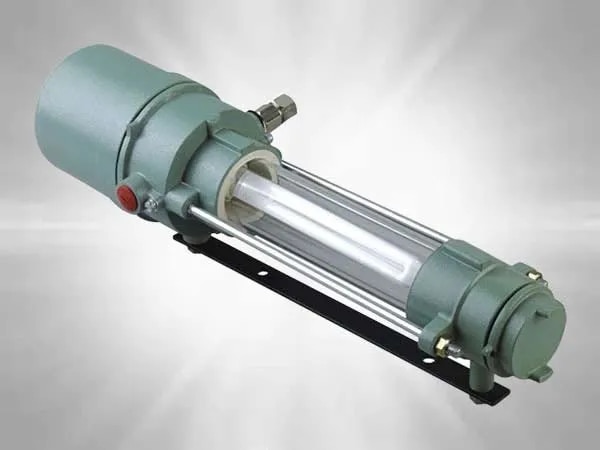

FLP / WP Emergency Tube-Light Fitting
In stock
Description
Technical Specification
Type of Ex-Protection : As per IS / IEC-60079-1:2007
Zone Classification : Zone 1 & Zone 2
Gas Group : Gas Group I, IIA, IIB
Ingress IP Protection : IP-65 IS / IEC 60529-2001
Auxiliary Supply : 230V AC or 24V DC as per requirements
Power Consumption : 450 mA @ 24VDC & 80 mA @ 230VAC
Audio Range : 80 dB (Pulsating)
Flasher : LED Type (Optional as per client requirements)
Terminal : 2.5 sq. mm Elmax Terminal
Material of Construction : Die Cast Aluminum Alloy LM6
Paint : Epoxy Polyester Powder Coating
Earthing : Internal: 01 No. & External: 2 Nos.
Cable Entry : 02 Nos. for M20 (3/4” ET)
Hardware : Stainless Steel
