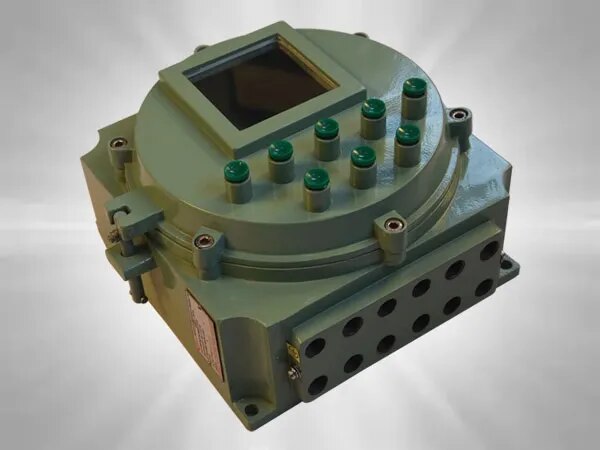

FLP / WP Instrument Enclosure - 250 mm Dia
In stock
Description
Technical Specification
Type of Ex-Protection AS PER IS 2148-2004/IEC-60079-1:2007
Zone Classification Zone 1 & Zone 2
Gas Group Gas Group I, IIA, IIB
Ingress IP Protection IP-65 IS / IEC60529-2001
Material of Contraction Die Cast Aluminum Alloy LM6
Green Push Button 7 To 8 Nos. PUSH with NO Contact element for 10 AMP
Glass Window 96 X 96 mm with Type “A” Toughened with Mt. Clamp 02 Nos.
Terminal As Per Client Requirements
Paint Epoxy Polyester Powder Coating
Earthling Internal: 01 No. & External: 2 Nos.
Cable Entry As Per Client Requirements
Hardware Stainless Steel
