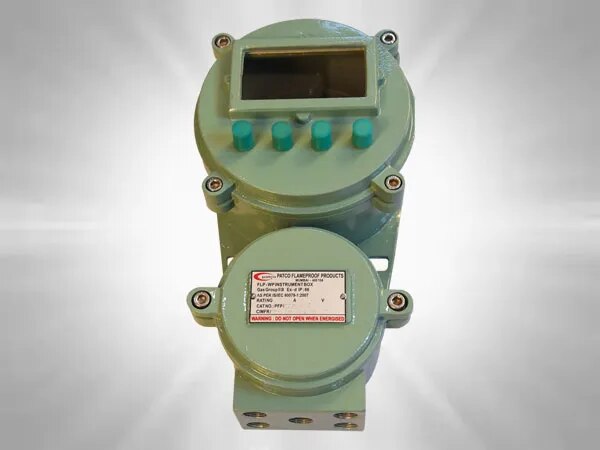

FLP / WP Instrument Enclosure with 100 X 50 Glass Window & 4 - 5 Nos Push Buttons
In stock
Description
Technical Specification
Type of Ex-Protection : AS PER IS / IEC-60079-1:2007
Zone Classification : Zone 1 & Zone 2
Gas Group : Gas Group I, IIA, IIB
Ingress IP Protection : IP-65 IS / IEC60529-2001
Material of Construction : Die Cast Aluminum Alloy LM6
Glass Window : 1 No. 100 X 50 mm Glass Window
Contact Element : Electronics PCB with 4-5 Nos. Key / 4-5 Nos. 10A NO Elements
Push : 4-5 Nos. Green Push
Terminal : 12 Way Clip on Rail or Strip Type
Paint : Epoxy Polyester Powder Coating
Earthing : Internal: 01 No. & External: 2 Nos.
Cable Entry : 03-05 Nos. for M20 (3/4” ET)
Hardware : Stainless Steel
