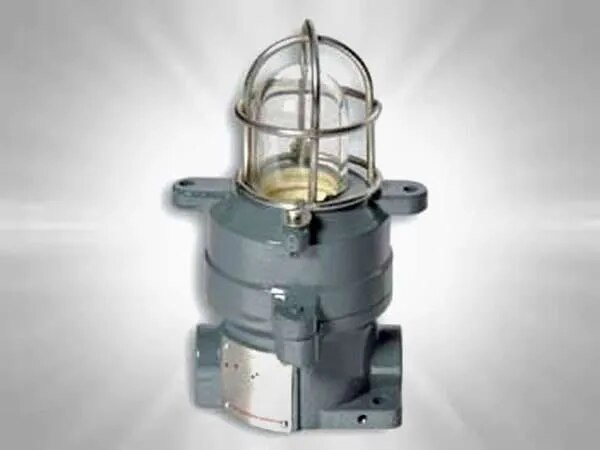

FLP / WP Level Gauge Illuminator
In stock
Description
Technical Specification
Type of Ex-Protection : Ex-d, As per IS 2148-2004 / IEC 60079-1:2007
Zone Classification : Zone 1 & Zone 2
Gas Group : Gas Group I, IIA, IIB
Ingress IP Protection : IP-65 IS / IEC 60529-2001
Material of Construction : Die Cast Aluminum Alloy LM6
Rating : 15W, 250V AC - T6 / 25W, 250V AC - T6
Wire Guard : M.S. White Powder Coated
Lamp Holder : Enclosed Break Porcelain E-27
Glass : Type “A” Toughened as per IS:2206/84 (Part-I)
Paint : Epoxy Polyester Powder Coating
Earthing : Internal: 01 No. & External: 2 Nos.
Cable Entry : 02 Nos. for M20 (3/4” ET)
Hardware : Stainless Steel
