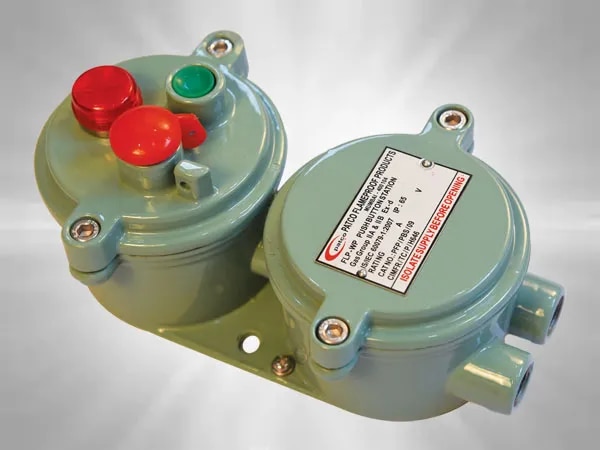

FLP / WP Push Button Station with Indicator
In stock
Description
Technical Specification:-
Catalogue No:- PFP/PBS/09
Type of Ex-Protection:- AS PER IS 2148-2004 / IEC-60079-1:2007
Zone Classification:- Zone 1 & Zone 2
Gas Group:- Gas Group I, IIA, IIB
Ingress IP Protection:- IP-65 IS / IEC60529-2001
Material of Contraction:- High Pressure Die Cast Aluminum Alloy LM6
Paint:- Epoxy Polyester Powder Coating
Earthling:- Internal: 01 No. & External: 2 Nos.
Cable Entry:- 02 Nos. for M20 ( 3/4” ET)
Hardware:- Stainless Steel
Indicating Lamp:- 1 No. Led 230V
Green Push Button:- START with 1 NO Contact element for 10 AMP
Red Push Button :- STOP Mushroom Head Pad Lock with 1 NC Contact 10AMP
