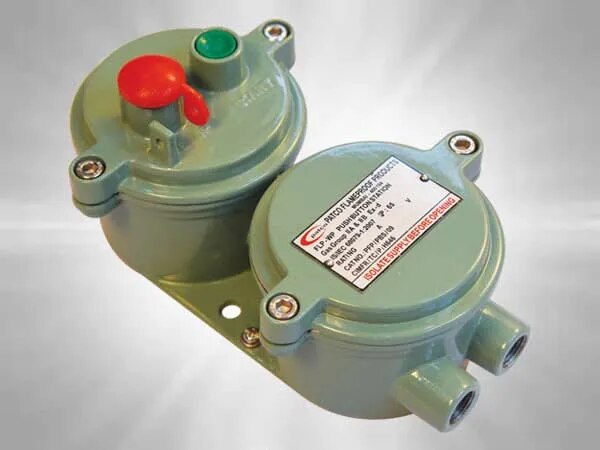

FLP WP Push Button Station
In stock
Description
Technical Specification
Catalogue No: PFP/PBS/09
Type of Ex-Protection: AS PER IS / IEC-60079-1:2007
Zone Classification: Zone 1 & Zone 2
Gas Group :Gas Group I, IIA, IIB
Ingress IP Protection: IP-65 IS / IEC60529-2001
Material of Contraction: High Pressure Die Cast Aluminum Alloy LM6
Paint: Epoxy Polyester Powder Coating
Earthling: Internal: 01 No. & External: 2 Nos.
Cable Entry: 02 Nos. for M20 (3/4” ET)
Hardware: Stainless Steel
Green Push Button: START with 1 NO Contact element for 10 AMP
Red Push Button: STOP Mushroom Head Pad Lock with 1 NC Contact 10AMP
