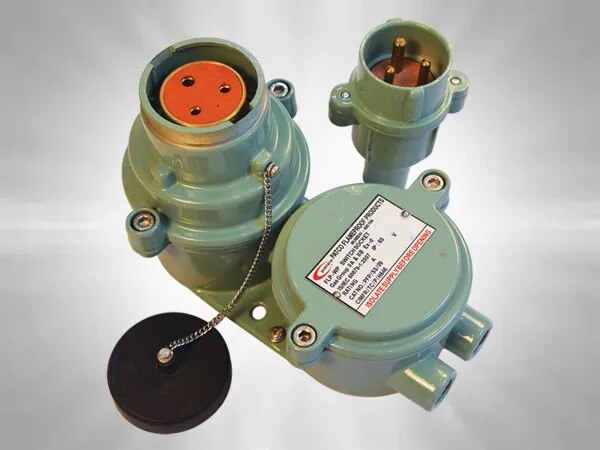

FLP / WP Switch Socket with Plug
In stock
Description
Technical Specification
Catalogue No: PFP/SS/09
Type of Ex-Protection: AS PER IS 2148-2004 / IEC-60079-1:2007
Zone Classification: Zone 1 & Zone 2
Gas Group :Gas Group I, IIA, IIB
Ingress IP Protection: IP-65 IS / IEC60529-2001
Material of Contraction: High Pressure Die Cast Aluminum Alloy LM6
Paint: Epoxy Polyester Powder Coating
Earthling: Internal: 01 No. & External: 2 Nos.
Cable Entry: 02 Nos. for M20 ( 3/4” ET)
Hardware: Stainless Steel
Switch: Upto 32 A SP / DP / TP
Socket: 3 PIN / 4 PIN / 5 PIN
Plug: 3 PIN / 4 PIN / 5 PIN
Terminals: Clip on Type Rail Mounted & Strip Type
