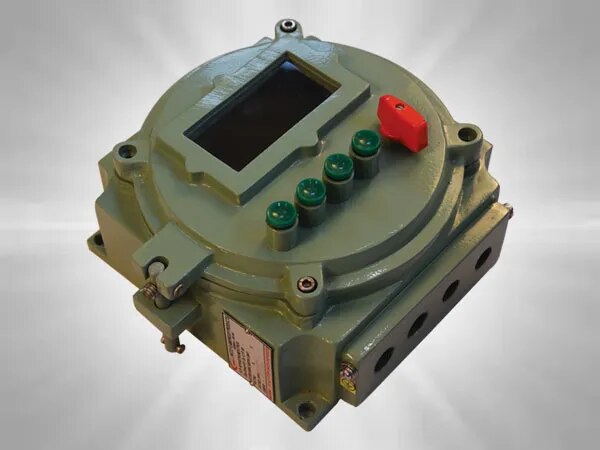

FLP / WP Weigh Indicator - 220 mm Dia
In stock
Description
Technical Specification
Type of Ex-Protection : AS PER IS 2148-2004 / IEC-60079-1:2007
Zone Classification : Zone 1 & Zone 2
Gas Group : Gas Group I, IIA, IIB
Ingress IP Protection : IP-65 IS / IEC60529-2001
Material of Construction : Die Cast Aluminum Alloy LM6
Green Push Button : 4 Nos. PUSH with NO Contact element for 10 AMP
Switch : 1 NO 12A DP, ON-OFF Switch 250V A.C. 50Hz
Glass Window : 100 X 50 mm with Type “A” Toughened with Mt. Clamp 02 Nos.
Terminal : As Per Client Requirements
Paint : Epoxy Polyester Powder Coating
Earthing : Internal: 01 No. & External: 2 Nos.
Cable Entry : As Per Client Requirements
Hardware : Stainless Steel
