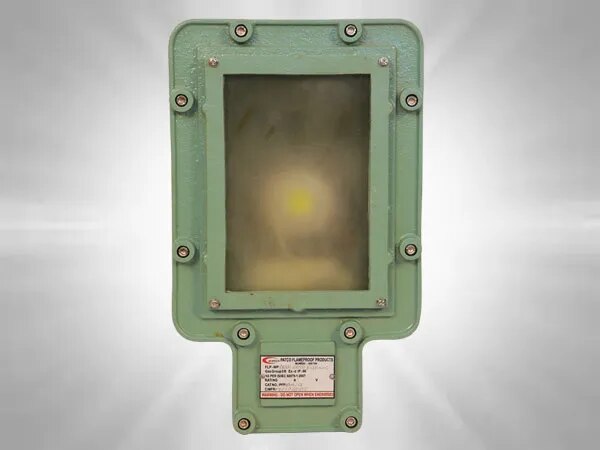

LED Flameproof Bulk Head - 30 / 45 / 60 Watt

Technical Specification

Luminaries Wattage : 45 Watt

Input Voltage : 230 V

Input Frequency : 50 Hz

Input Current : 0.6 A

Power Factor : > 0.90

THD (ATHD) : Class A

Efficiency : 87%

Light Spreading Angle : 120°

Temperature Class : T6

IP Standard : IP66

Total Weight : 6.2 Kg

Starting Time : Rapid (0.2 sec)

Guarantee : 2 Years (Including FLUX / CCT / CRI)

LED Lamp Make : LUMILEDS

LED Type : COB / Single Lamp

Total Lumen @ Tc 25°C : 5160 / 5600 / 6200 lm

Lumen Efficacy : 129 / 140 / 155 lm/W

CCT / CRI : 3000K / Ra 70, 5000K / Ra 70, 6500K / Ra 80

SP Ratio : 2 – 2.25

MacAdam Ellipse Stage : Step 3

LED Rating : 40W / 1115 mA / 35.9 V

Lamp Life : 1,00,000 Hours Min.

Certifications / Reports : LM70, LM80 / Photo Bio. Test / Vibration Test

Test Report : Actual Operating Test Report for 63,000 Hrs

LED Driver : PHILIPS & FULHAM

Driver Type : Constant Current (CC)

Input Voltage Range : 180–295 VAC

Frequency Range : 47–63 Hz

Inrush Current : Cold Start 25A

Leakage Current : < 0.25 mA / 240 VAC

Output Protection : Over Voltage

Withstand Voltage : I/P–O/P 3.75 kVAC Min.

Surge Protection : L–N 2KV

Optics Type : PC

Material of Optics : Polycarbonate

Secondary Optics : Toughened Glass

Fixture Make : PATCO

Certification : CMRI Certified (Including LED Lamp)

Material of Fixture : Aluminum Casting

Heat Sink Make : Own Design

Material of Heat Sink : Aluminum Extrusion LM-06

Junction Temperature (TJ) : 73°C

Case Temperature (TC) : 60°C
