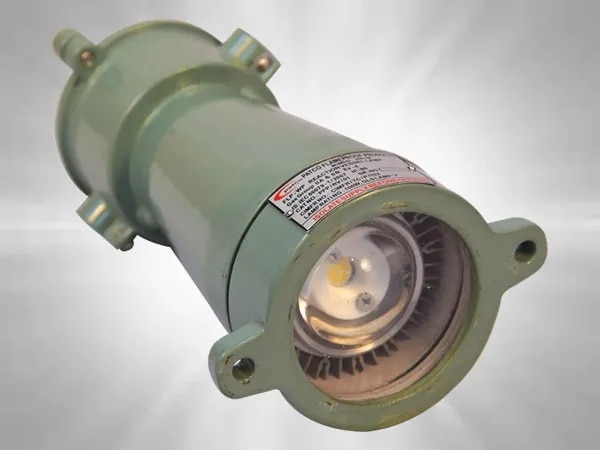

LED Flameproof Reaction Vessel Lamp - 15 Watt

Technical Specification

Luminaries Wattage : 15 Watt

Input Voltage : 230 V

Input Frequency : 50 Hz

Input Current : 0.3 A

Power Factor : NA

THD (ATHD) : Class A

Efficiency : 84%

Light Spreading Angle : 70°

Temperature Class : T6

IP Standard : IP66

Total Weight : 3 Kg

Starting Time : Rapid (0.2 sec)

Guarantee : 2 Years (Including FLUX / CCT / CRI)

LED Lamp Make : LUMILEDS

LED Type : COB / Single Lamp

Total Lumen @ Tc 25°C : 1176 lm

Lumen Efficacy : 98 lm/W

CCT / CRI : 5000K / Ra 65

SP Ratio : 2 – 2.25

MacAdam Ellipse Stage : Step 3

LED Rating : 12 W / 370 mA / 35.2 V

Lamp Life : 1,00,000 Hours Min.

Certifications / Reports : LM70, LM80 / Photo Bio. Test / Vibration Test

Test Report : Actual Operating Test Report for 63,000 Hrs

LED Driver : PHILIPS & FULHAM

Driver Type : Constant Current (CC)

Input Voltage Range : 90–264 VAC

Frequency Range : 47–63 Hz

Inrush Current : Cold Start 25A

Leakage Current : < 0.25 mA / 240 VAC

Output Protection : Over Voltage

Withstand Voltage : I/P–O/P 3.75 kVAC Min.

Surge Protection : L–N 2KV

Optics Type : PC

Material of Optics : Polycarbonate

Secondary Optics : Toughened Glass

Fixture Make : PATCO

Certification : CMRI Certified (Including LED Lamp)

Material of Fixture : Aluminum Casting

Heat Sink Make : Own Design

Material of Heat Sink : Aluminum Extrusion LM-06

Junction Temperature (TJ) : 68°C

Case Temperature (TC) : 55°C
